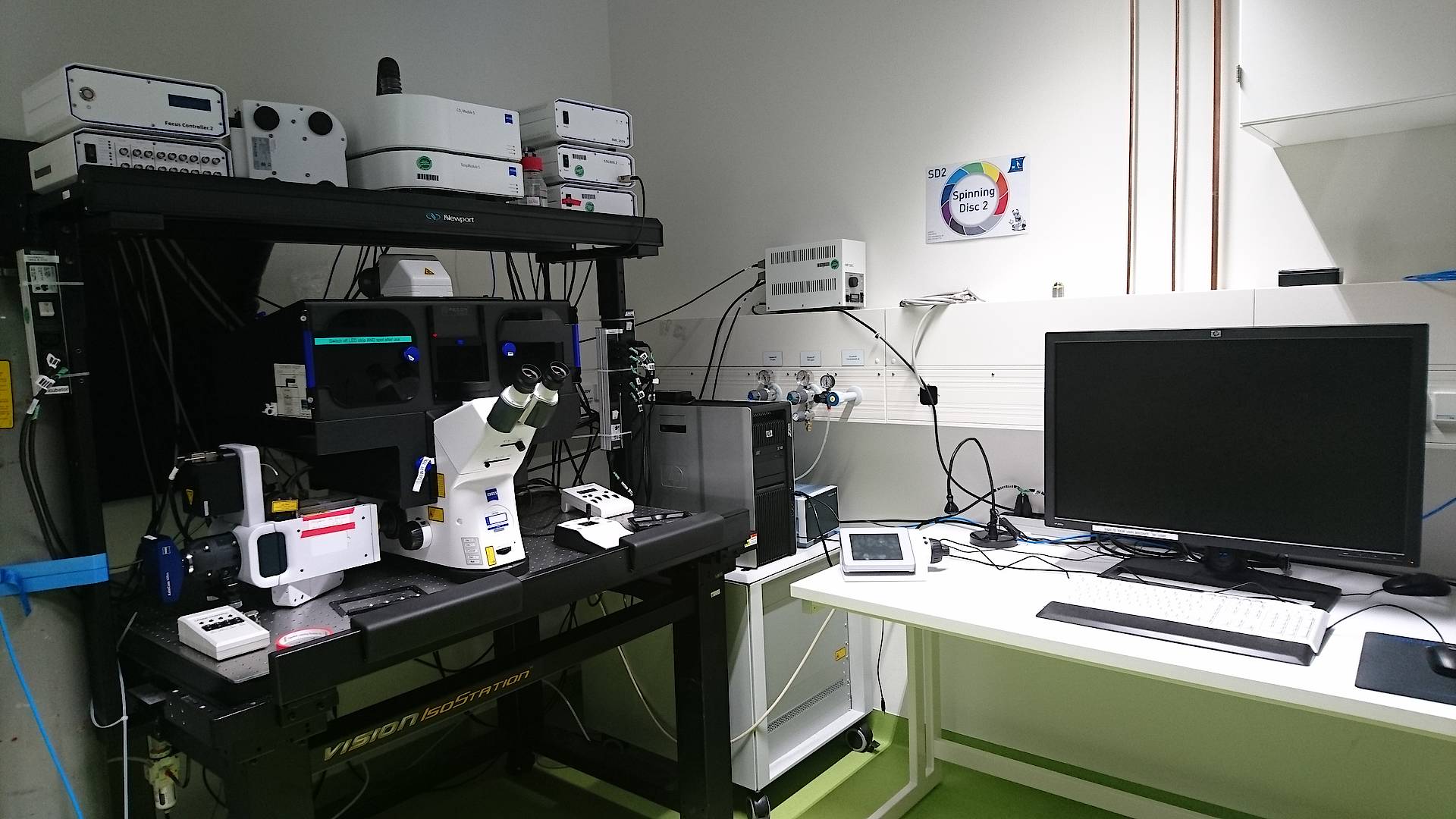

DZNE SD2 Spinning Disk 2 Incubation (Zeiss)
This Spinning disc system comes with a dark microscope stand incubation chamber, with which you can hold a stable temperature and CO2 environment.
Category
Spinning disk
Location
DZNE, LMF DZNE, room 251
Suitable for Specimen
Suitable for Technique
Microscope Stand
Objectives
5x/0.16 Plan-Apochromat, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 12.1 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | DZNE 17 5x/0.16 Zeiss |
| Order Number: | 420630-9900 |
20x/0.8 Plan-Apochromat, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.55 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | DZNE 18 20x/0.8 Zeiss |
| Order Number: | 420650-9901 |
2.5x/0.08 EC Plan-Neofluar, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 8.8 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | DZNE 19 2.5x/0.085 Zeiss |
| Order Number: | 420320-9901 |
40x/0.95 Plan-Apochromat, Air, Zeiss
| Immersion: | Air |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.25 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | DZNE 20 40x/0.95 Korr Zeiss |
| Order Number: | 420660-9970 |
100x/1.4 Plan-Apochromat, Oil, DIC, Zeiss
| Immersion: | Oil |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.17 mm |
| Nomarski Prism: | PA 100/1,4 HC II (426949) |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | DZNE 21 100x/1.4 Zeiss |
| Order Number: | 420792-9900 |
10x/0.3 EC Plan-Neofluar, Air, Ph1, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | - |
| Working Distance: | 5.2 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | DZNE 22 10x/0.3 Zeiss |
| Order Number: | 420341-9911 |
Condenser
Fluorescence Filter Cubes
motorized revolver
GFP (set 489038-9901-000)
single cube for Alexa488/GFP, CFP, FITC
- BP 470/40 (BP 450-490), excitation filter, bandpass, Zeiss
- LP 495, dichromatic mirror, longpass, Zeiss
- BP 525/50 (BP 500-550), emission filter, bandpass, Zeiss
, set 489038-9901-000
Cy3 (set 43 HE)
single cube for Alexa555/Cy3/RFP
- BP 605/70 (BP 570-640), excitation filter, bandpass, Zeiss
- LP 570, dichromatic mirror, longpass, Zeiss
- BP 550/25 (BP 538-563), emission filter, bandpass, Zeiss
Zeiss, set 43 HE
Texas red (set 49)
single cube for DAPI
- G 365, excitation filter, bandpass, Zeiss
- LP 395, dichromatic mirror, longpass, Zeiss
- BP 445/50 (BP 420-470), emission filter, bandpass, Zeiss
Zeiss, set 49
Cy5 (set 50)
single cube for Cy5
- BP 690/50 (BP 665-715), excitation filter, bandpass, Zeiss
- LP 660, dichromatic mirror, longpass, Zeiss
- BP 640/30 (BP 625-655), emission filter, bandpass, Zeiss
Zeiss, set 50
B-G-R (DAPI/GFP/RFP) (set 62)
triple cube for DAPI/GFP/RFP
- BP 370/40; BP 474/28; BP 585/35 (BP 350-390; BP 460-488; BP 568-603), excitation filter, bandpass, Zeiss
- (DM 395+495+610), triple dichromatic mirror, triple bandpass, Zeiss
- BP 425/46; BP 527/54; LP 615 (BP 402-448; BP 500-554; LP 615), emission filter, triple bandpass, Zeiss
Zeiss, set 62
Additional Filters
DAPI, GFP, Cy3, Cy5
- BP 450/50 (BP 425-475), emission filter, bandpass, Zeiss
- BP 525/50 (BP 500-550), emission filter, bandpass, Zeiss
- BP 617/73 (BP 581-654), emission filter, bandpass, Zeiss
- BP 690/50 (BP 665-715), emission filter, bandpass, Zeiss
Fluorescence Illumination
HXP 120C
Zeiss, Metal halide lamp, 120W, integrated
365, 470, 590, 625 nm
Zeiss, Colibri LED, integrated
405nm
Laser Diode, integrated
488nm
Laser OPSL, integrated
568nm
Laser DPSS
635nm
Laser Diode, integrated
Camera
Zeiss AxioCam MRm, Monochrome CCD camera, dexel size 6.45 µm
| port | SD port |
| magnification | 1x |
| bit depth | 12 bit |
| sensor size | 8.9 x 6.7 mm |
| maximum frame size | 1388 x 1040 dexel |
| maximum full chip frame rate | 12.86 fps |
| Serial number | 120125512 |
XY Stage
Hardware Autofocus
Zeiss Definite Focus.2
Incubation
Additional Information
